RETROFIT OF FIN ZERO-SPEED STABILIZERS ON m/y “IDEFIX”, 2010
All aluminum motor yacht “IDEFIX” has been retrofitted with zero-speed fin
Stabilizers at NCP-Sibenik

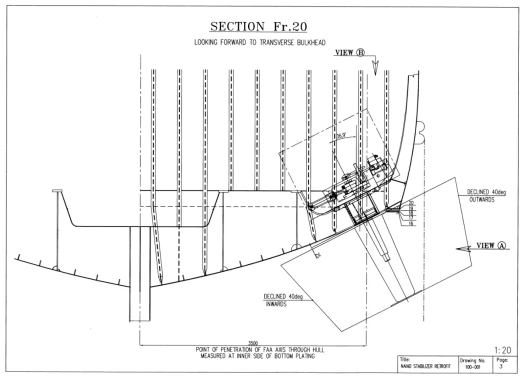

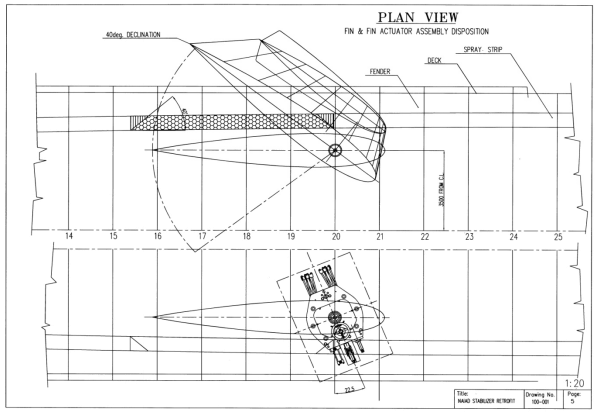

“Yacht Design” involvement: all hull and system drawings necessary for proper integration of the fins, updated E.R. arrangement for hydraulic unit addition
Main particulars of m/y “Idefix”
| Length, overall, hull | 39.60 m |
| Length, waterline | 35.50 m |
| Breadth, moulded | 8.60 m |
| Depth, moulded ,midship | 4.23 m |
| Draught, full load | 2.25 m |
| Displacement, full load | 265t |
| Output of main engines | 2 x 1680kW at 2100rpm |
| Speed, trial | 23 kn |
